Brand Name : HUATEC
Model Number : HTH-20
Certification : CE
Place of Origin : China
MOQ : 1 SET
Price : USD110-USD125/SET
Payment Terms : T/T, Western Union,Paypal
Supply Ability : 10 Sets/Month
Delivery Time : 7-10 working days after receipt of your payment
Packaging Details : ABS box+Outer carton packaging
Test range : 1.0~25Mpa
Standard impact energy : 0.196J(0.02kgf.m)
Stroke of rebound hammer : 75mm
Friction of pointer slider : 0.4N~0.6N
Sphere radius of rebound pole SR : 25mm
Average rebound hammer on steel anvil : 74±2
Size : Φ54*268mm

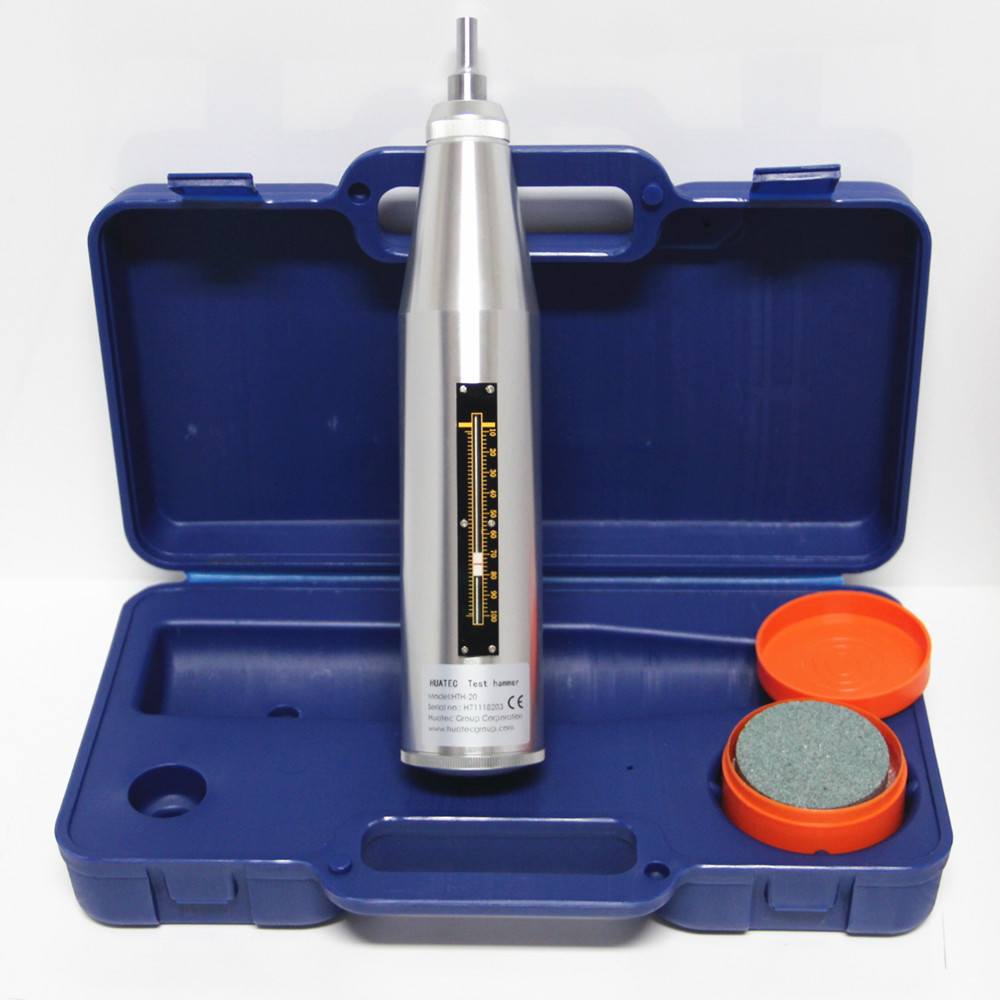

HTH-20 Mortar Test Hardness and Strength Concrete Test Hammer
Motar test hammer
1.Al alloy or plastic shell
2.Easy operation, type-in-one
3.test hardness and strength
4.N W: 0.8kg
Brief introduction:
This instrument is specially used in testing the compressive strength of mortar in building brick component.
Trait:
1)Center rod use imported materials, high precision, wear proof.
2)Shell made from super hard aluminum, perfectly protect instrument from damage on site work, and prolong use life.;
3)Pointer slider is outside ring structure, easy to adjust friction, and assure the equal friction between pointer slider and axis, so that assure the accuracy of instrument. Compare with other brand similar product, it’s better accuracy, longer use life.
Parameter:
Test range | 1.0~25Mpa |
Standard impact energy | 0.196J(0.02kgf.m) |
Stroke of rebound hammer | 75mm |
Friction of pointer slider | 0.4N~0.6N |
Sphere radius of rebound pole SR | 25mm |
Average rebound hammer on steel anvil | 74±2 |
Size | Φ54*268mm |
Net weight | 1kg |
![]() |
Mortar Test Hardness And Strength Concrete Test Hammer Images |
