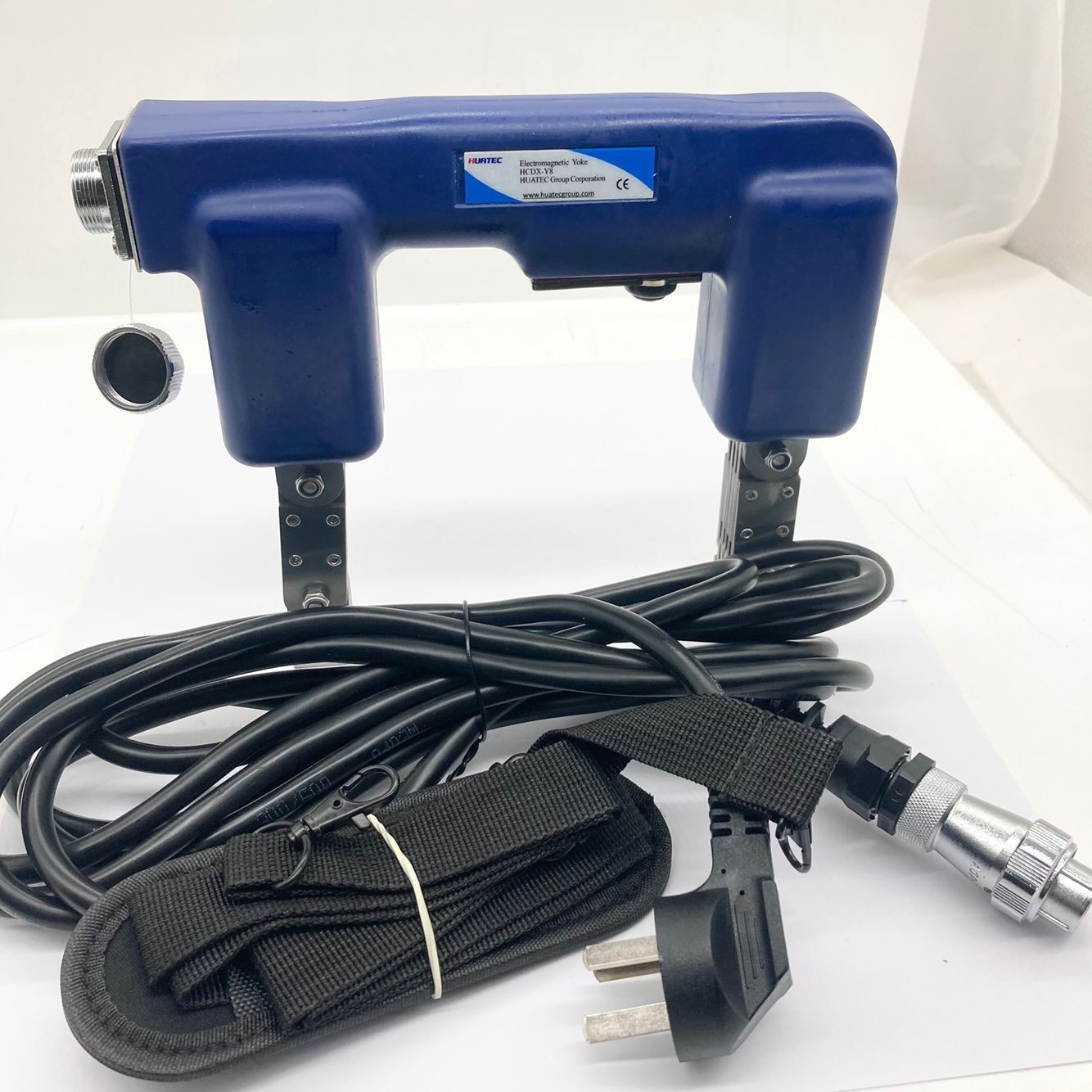

HCDX-Y8 AC Portable Magnetic Yoke Flaw Detector

  • 1
  • 2

Brand Name : HUATEC

Model Number : HCDX-Y8

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : USD760-USD860/SET

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10 Sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : aluminum alloy box+Outer carton packaging

Magnetic electrode distance : 45~225mm

Power cord length (spring wire) : 3m

Temperature rise : Handle surface temperature ≤40 ° C

Lifting power : ≥4.5Kg

Power supply : AC:220V/50Hz

Contact Now

HCDX-Y8 AC Portable Yoke Magnetic Yoke Flaw Detector

HCDX-Y8 is our latest developed AC yoke. It is used for magnetic particle flaw detection and local magnetization of the workpiece. The machine is compact and durable, and is one of the lowest weight and largest span AC yoke on the market. Lifting force and other indicators meet the requirements of GB/T 15822.3-2005/ISO 9934-3:2002, ASME V and other standards.

1. Machine structure

Item Part Number Item Part Number
1 Yoke 5 Power Cable
2 Inductive LED lighting 6 Aviation connector cover connection cable
(Optional accessories)
3 Yoke foot 7 Aviation coupling cover
4 microswitch 8 AC Power Cable

2. Usage method

Connect the power cable to the host and plug the AC plug into the 220V power socket.

Place the two magnetic poles of HCDX-Y8 on the surface of the detected object, and apply certain pressure to make the two magnetic poles in good contact with the detected object. Press the button switch, turn on, start magnetization, loosen, magnetization ends. When the yoke switch is turned on, the magnetic powder is applied to the surface of the detected object (dry, wet, fluorescent magnetic powder can be applied).

If the surface to be examined is too wide, it shall be magnetized in sections, and the effective parts between the sections shall overlap to a certain extent.

Rotate the movable joint between the magnetic feet, and the distance between the magnetic feet can be adjusted between 45mm and 225mm.

When using should pass 5 seconds off 5 seconds, can be used continuously for 4 hours.

3. Technical parameters

3.1 Yoke

Item Indicator Item Indicator
Yoke Weight 2.35Kg Sensitivity The 30/100A test piece is clearly displayed
Power supply AC:220V/50Hz Lifting power ≥4.5Kg
Electric current No-load 1.4A Temporary load rate On 5 seconds, off 5 seconds, continuous use of more than 4 hours
Load 1.0A Temperature rise Handle surface temperature ≤40 ° C
Magnetic electrode distance 45~225mm Insulation strength >2MΩ
Power cord length (spring wire) 4m Size of magnetic foot contact surface 20×21mm

4. Attention

Please check the power cord and plug for damage before use.

Do not keep close contact with other electrical equipment during use. Strong magnetic fields have destructive effects on watches, mobile phones, etc.

Do not hold the yoke in the conduction state for a long time (such as dragging  line on the weld), should be on for 5 seconds and off for 5 seconds.


In the DC state, disconnect the connection line between the battery and the magnetic yoke after the end of the work, and the battery should be stored in a cool and dry place, strictly prohibited in the sun, otherwise there is a danger of explosion. Please disconnect the power supply after charging.

In rainy weather, please do not work outdoors, rain will cause short circuit or leakage.

The unit is completely waterproof except at the power junction. Please pay attention when applying magnetic suspension.


If the device has abnormal noise or odor, turn off the power immediately.


Do not move the device by pulling the power cable. This will damage the power cable.


If the equipment is abnormal, do not repair it without authorization, please contact the dealer or contact our after-sales service center directly.


Check whether there is iron dust on the connector of the power cable. Metal dust can cause short circuits.

After use, the magnetic powder on the magnetic pole should be cleaned up and applied with anti-rust oil to prevent it from rusting and sticking.

5. Configure the table

Iiem Name Quantity
1 Host 1
2 220V Power Cable 1
3 Yoke strap 1
4 Yoke backpack 1
5 Hex key 3mm 1
6 Manual 1
7 Calibration certificate 1

Note: This machine can be optional charger, battery, cable, optional can be converted into DC yoke. Optional induction LED lighting and inclined magnetic feet.

7. Quality guarantee

Thank you for choosing our HCDX-Y8 AC portable yoke, our company strictly in accordance with ISO 9001-2008 quality system management. Each equipment is tested and issued by the quality department of the company. This product meets the requirements of GB/T 15822.3-2005/ISO 9934-3-2002, ASME V and other standards.

The warranty period of this product is 1 year, under normal use, any failure of the product will be repaired by the company free of charge (free material and maintenance costs), and preferential paid maintenance will be provided within 3 years.
