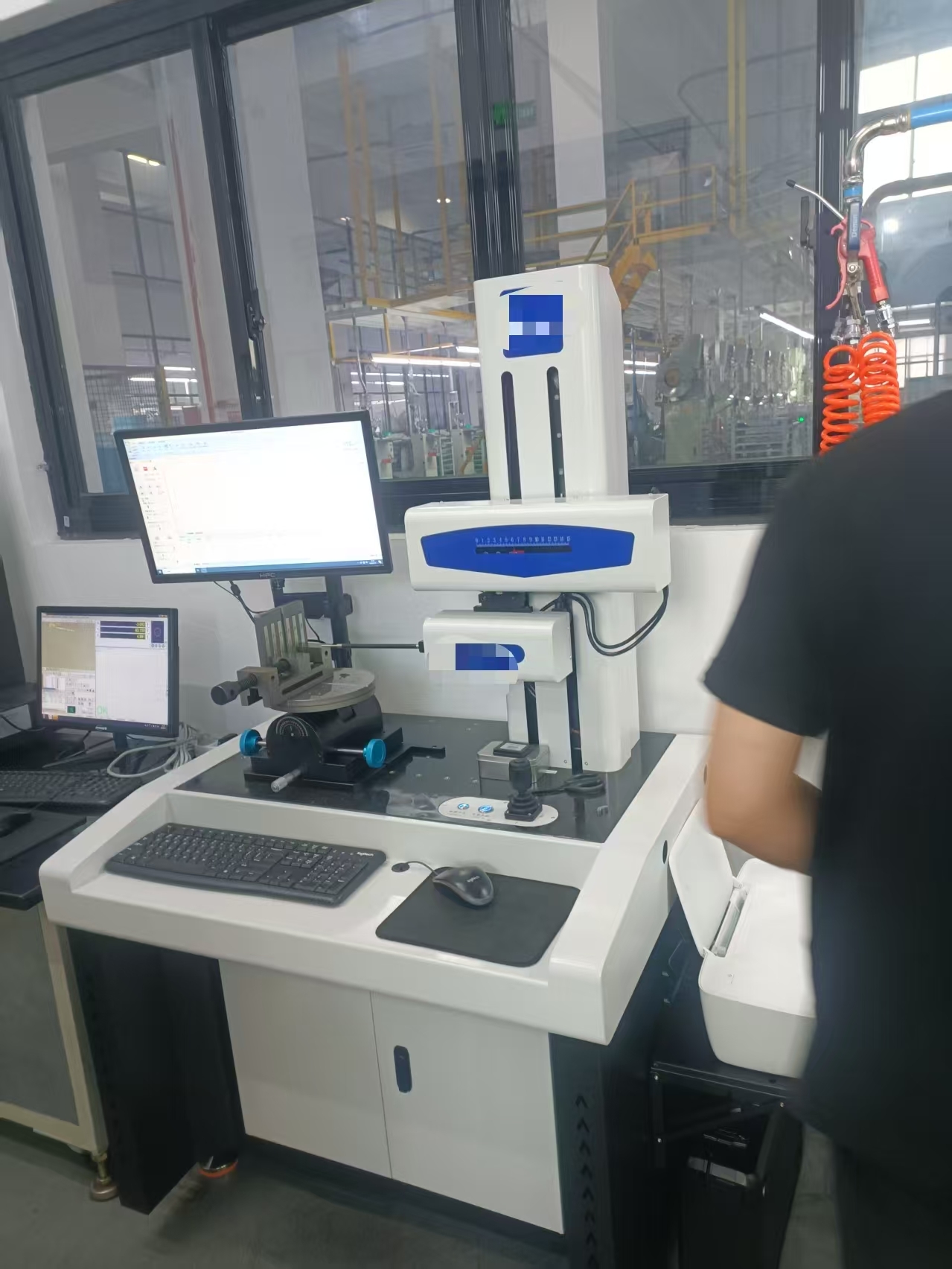

SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range

  • 1
  • 2

Brand Name : HUATEC

Model Number : SRT-210G

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD14950/set - USD16900/set

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 10-15 working days after receipt of your payment

Packaging Details : Carton packing box

Straightness : 1um/100mm

Movement Speed : 0 ～10mm/s （arbitrary speed）

Indication accuracy : ±（2.5+2L/100) L is driving length（mm）

File output mode : PDF， Excel

Power : 400W，AC220V 50HZ

Air consumption : 30L/min

Contact Now

SRT-210G Roughness Contour Profile Analysis Tester

FEATURES:

Various types of workpiece surface line elements, point features, point to point distance, line to line distance, the location of each element includes: distance, parallelism, angle, groove depth, groove width, radius, straightness analysis, convexity analysis, profile analysis, etc.

SPECIFICATIONS:

XI AXIS(Cross Arm)
Measuring Arrange 100mm
Straightness 1um/100mm
Driving Mode Direct drive motor
Movement Speed 0 ～10mm/s (arbitrary speed)
Resolution 0.05SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range
Indication accuracy ±(2.5+2L/100)SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range L is driving length(mm)
Measuring direction backward
Measuring Method Grating Ruler
Z1 AXIS (SENSOR)
Measuring range 30mm
Resolution 0.05SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range
Measuring Method Holographic grating sensor
Indication accuracy ±(1.5+|6H|/50)SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range
Probe up/down movement Arc movement
Probe direction downward
Probe lifting mode manual
Measuring force 6mN
Probe

radius:25SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range(cemented carbide)

length:20mm

diameter:2mm
Climbing angle up75° down85°
Measuring speed 0.1 mm/s～4 mm/s(any speed)
Z2 AXIS(COLUMN)
Max. Measuring height 200mm
Movement mode CNC or handle
Movement speed 0.1～8mm/s(any speed)
Tool and fixture
Precision two-dimensional adjustment platform X:0 to 25mm,Y:0 to 25mm
Angle adjustment platform Axial 360 degrees,pitch:±45degrees
V shaped iron 60mm
Acquisition control system
System transmission mode USB and LAN
System resolution /
Motion control mode CNC or handle drive
Data processing
Zoom in or out Zoom in and out with the mouse wheel
Guides Add guides to any area of the drawing
Data fitting when the finished part cannot be measured at one time, it can be divided into several measurements and finally merged
Remove abnormal points manually or automatically
Graph move drag the mouse to move freely within the graph coordinates
Graph rotation Any angle rotation
Zoom Select region to zoom in and out
SPC quality analysis Histogram,normal distribution
File output mode PDF, Excel
Measuring report editor can output standard report, and user can edit report according to requirement
Working Parameters
Pressure /
Air consumption 30L/min
Power 400W,AC220V 50HZ
Working condition

Temperature:10～30℃；

Humidity:＜85%
Optional

Industrial Personal Computer

&DE LL display screen

 1
Output A4 printer 1
Standard adjustment platform 1
Stand block 1
Standard ball 1

SRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring RangeSRT-210G Roughness Contour Profile Analysis Tester with 100mm Measuring Range
